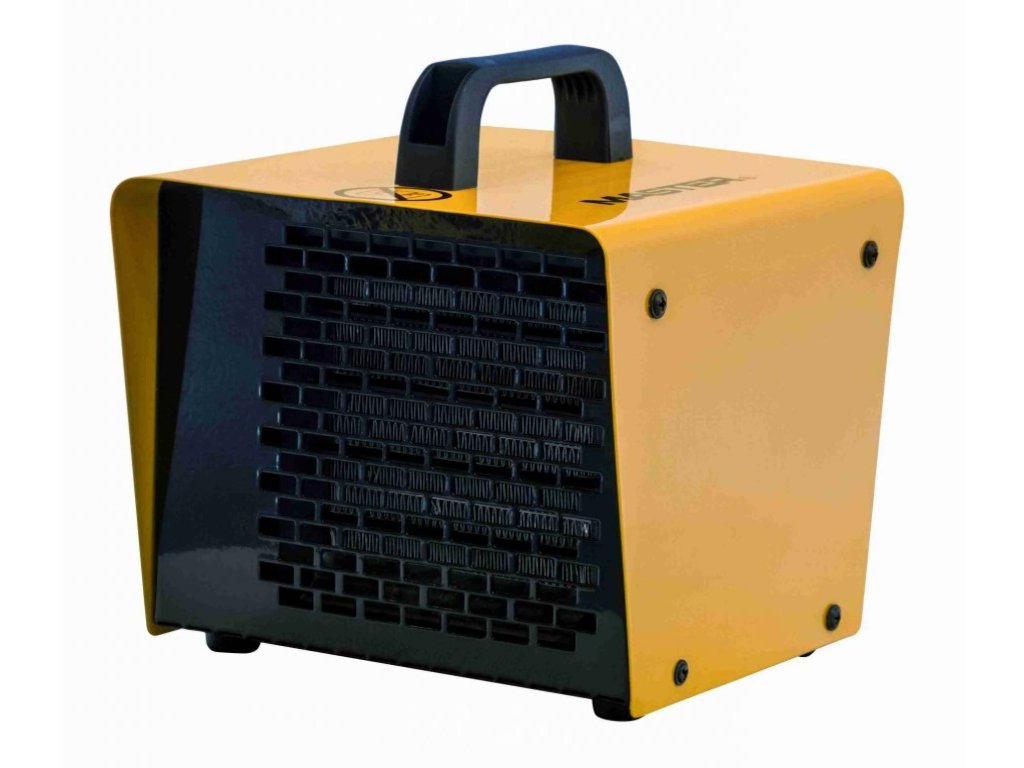

MASTER B 3 PTC Electric heater
Heating power: 1,5/3 kW
Air flow: 258 m³/h
Temperature range: 0-40 °C
MASTER B 3 PTC Electric heater
MASTER B 3 PTC Electric heater
Automatic reset
Built-in thermostat
No oxygen consumption
No fumes, no odours, no humidity
Summer-winter switch for ventilation only
Low noise level
Motor with thermal protection
Adjustable heat
No fumes, no odours, no humidity
Summer-winter switch for ventilation only
Low noise level
Motor with thermal protection
Adjustable heat
|
Heater performance
1,5 / 3,0 kW
3,400 / 10.200 Btu / h
860 / 2,580 Kcal / h
|
Rated current:
13 A |
Switch pos. 1:
OFF |
Package dimensions (w x h x d) :
244 x 240 x 250 mm |
|
Power supply:
230/50 V / Hz |
Temperature range:
0-40 ° C |
Switch pos. 2:
1,5 kW |
Net / gross weight:
3,4 / 3,7 kg |
|
Thermostat control:
Yes |
Resistance standard:
IP21 |
Switch pos. 3:
3 kW |
Air power:
97 m³ / h |
|
Plug (male) from the heater side:
16A / 3P |
|
||
Additional parameters
| Category: | Electric heaters |
|---|---|
| Warranty: | 2 years |
| Weight: | 3.4 kg |
| Heating power, kW: | 1.5/3 |
| Heating power, Btu/h: | 3,400-10,200 |
| Heating power, kcal/h: | 860-2,580 |
| Air flow, m³/h: | 258 |
| Power supply, V/Hz: | 230/1ph/50 |
| Plug (male) from heater side: | 16A/3P |
| Rated current, A: | 13 |
| Switch pos. 1, kW: | Off |
| Switch pos. 2, kW: | 1.5 |
| Switch pos. 3/4, kW: | 3 |
| Thermostat control: | Included |
| Temperature range, °C: | 0-40 |
| Protection: | IP21 |
| Product size (l x w x h), mm: | 244x 240 x 250 |
| Box size (l x w x h), mm: | 244x 240 x 250 |
| Net/gross weight, kg: | 3.4/3.7 |
