Hahn & Sohn Vibrating plate Honda HCH95-GX160
Weight: 93 kg
Max. Engine power: 3,6 kW
Nominal power: 2,9 kW
Lift volume: 163 cm³
Fuel: unleaded gasoline
Hahn&Sohn Vibrating plate Honda HCH95-GX160

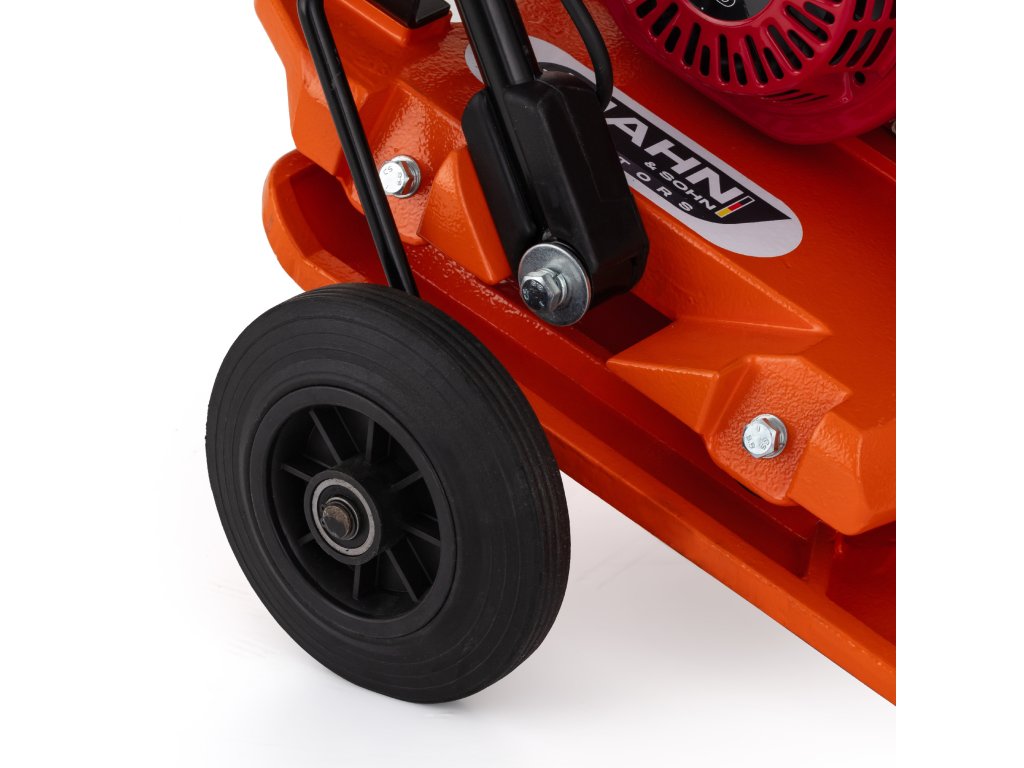

Vibrating plates are among the most heavily loaded construction machines, so we focus on simple and robust design solutions. The HC95 is based on a heavy-duty, solid vibrating plate and a durable Honda engine with a maximum output of 3.6 kW and a rated power of 2.9 kW. To increase working comfort, we have equipped the unit with transport wheels.
- Vibrating plate suitable for compacting a wide range of substrates
- Reliable and powerful Honda petrol engine

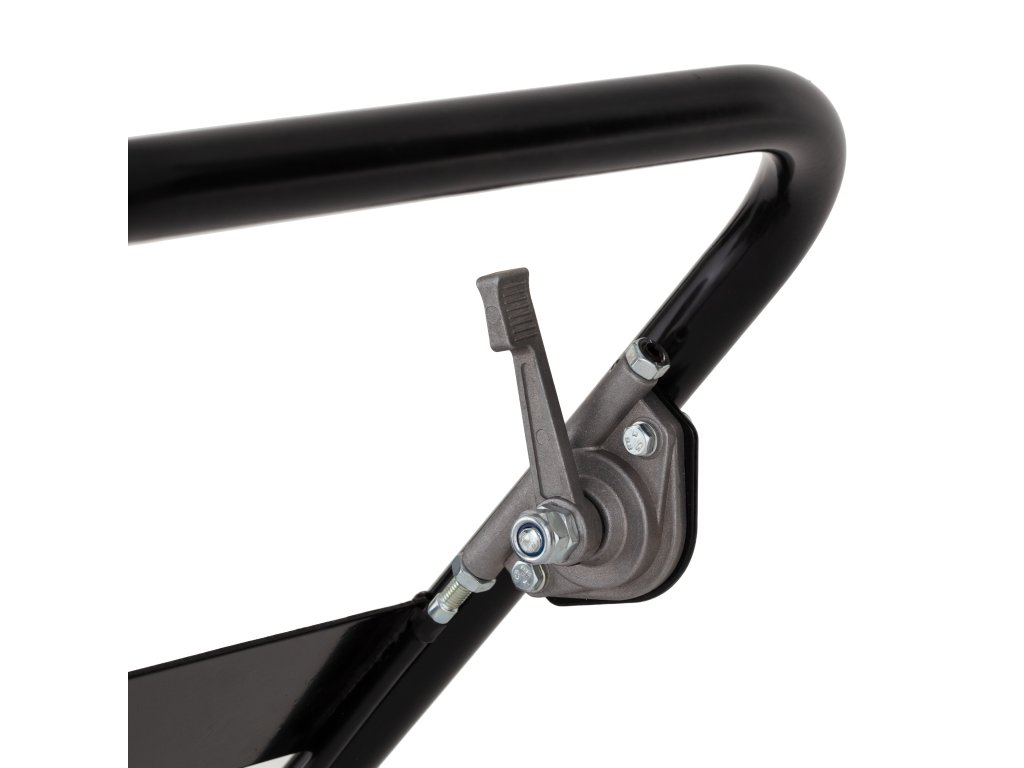

- Ergonomic handle for smooth and easy transport.
- Vibration protection to protect the motor and ensure long service life
- Water tank for compacting hot surfaces
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 93 kg |
| Frequency of undercutting/vibration: | 6000 vpm |
| Centrifugal force: | 21 kN |
| Maximum efficiency: | 315 m²/h |
| Plate size: | 530x540 mm |
| Dimensions: | 1070x520x810 mm |
| Engine volume: | 169 cm³ |
| Maximum power: | 3,8 kW |
| Nominal power: | 2,9 kW |
| Engine type: | 1-cylinder, four-stroke Honda petrol engine, OHV |
| Fuel consumption: | ≤1.4 l/h |
| Amount of oil in the system: | |
| Tank volume: |
