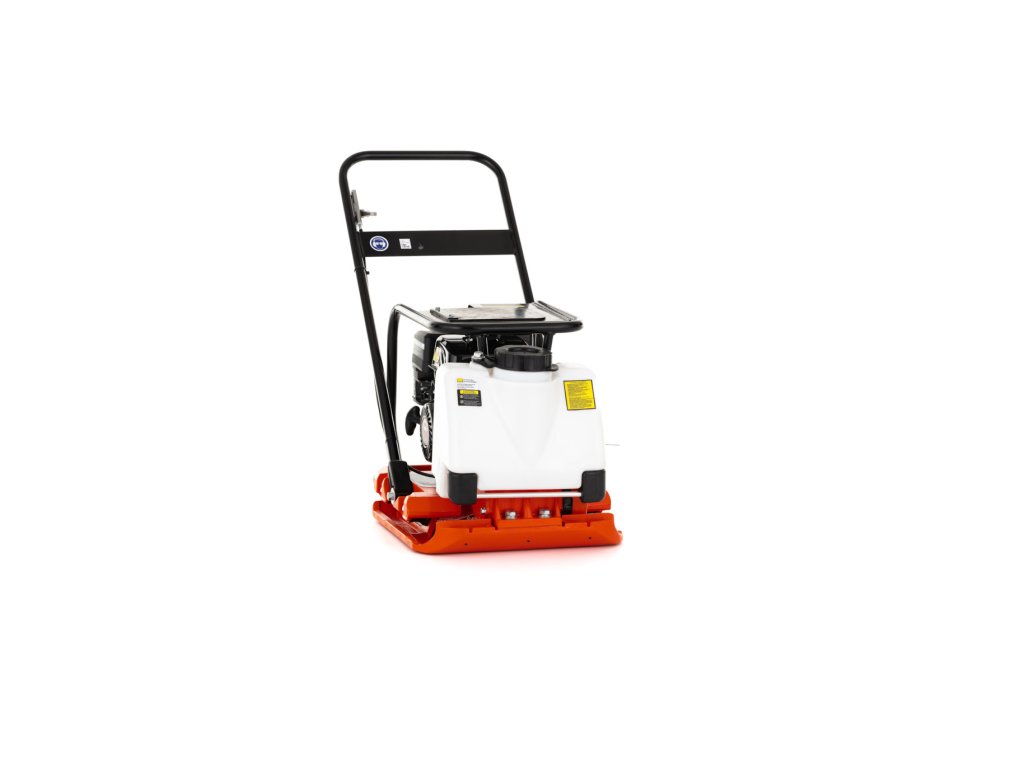

Hahn & Sohn Vibrating plate HCH95-HG200
Weight: 95 kg
Max. Engine power: 4,2 kW / 5.7 HP
Nominal power: 3,8 kW / 5.1 HP
Lift volume: 196 cm³
Fuel: Unleaded gasoline (ROZ 95)

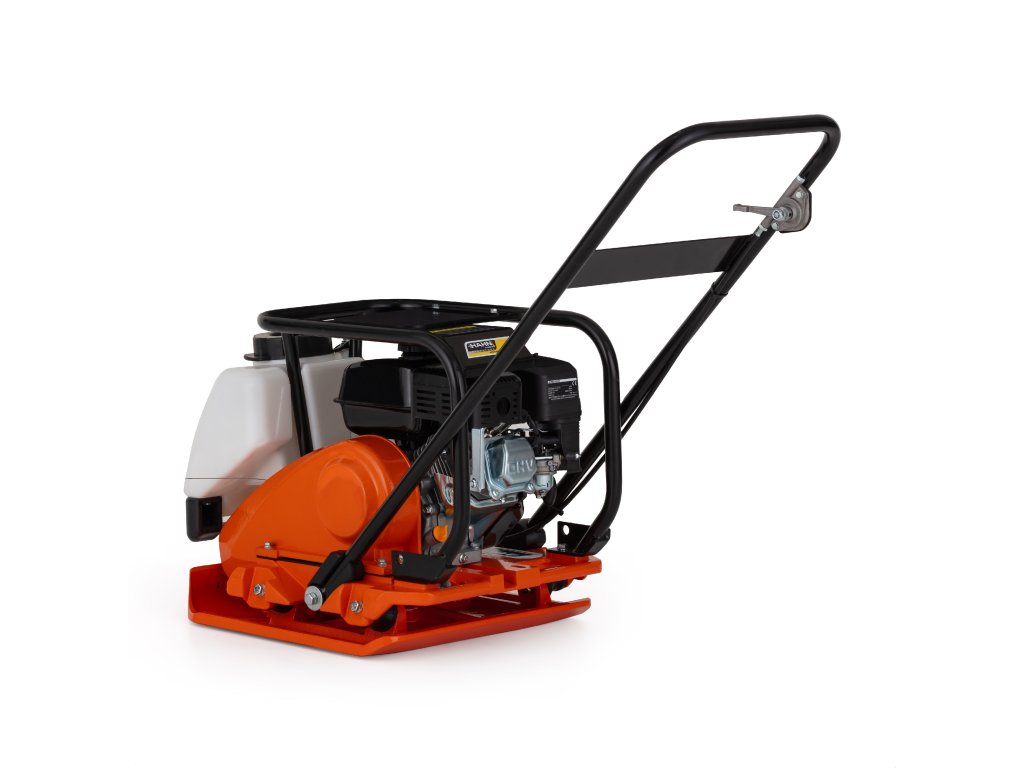

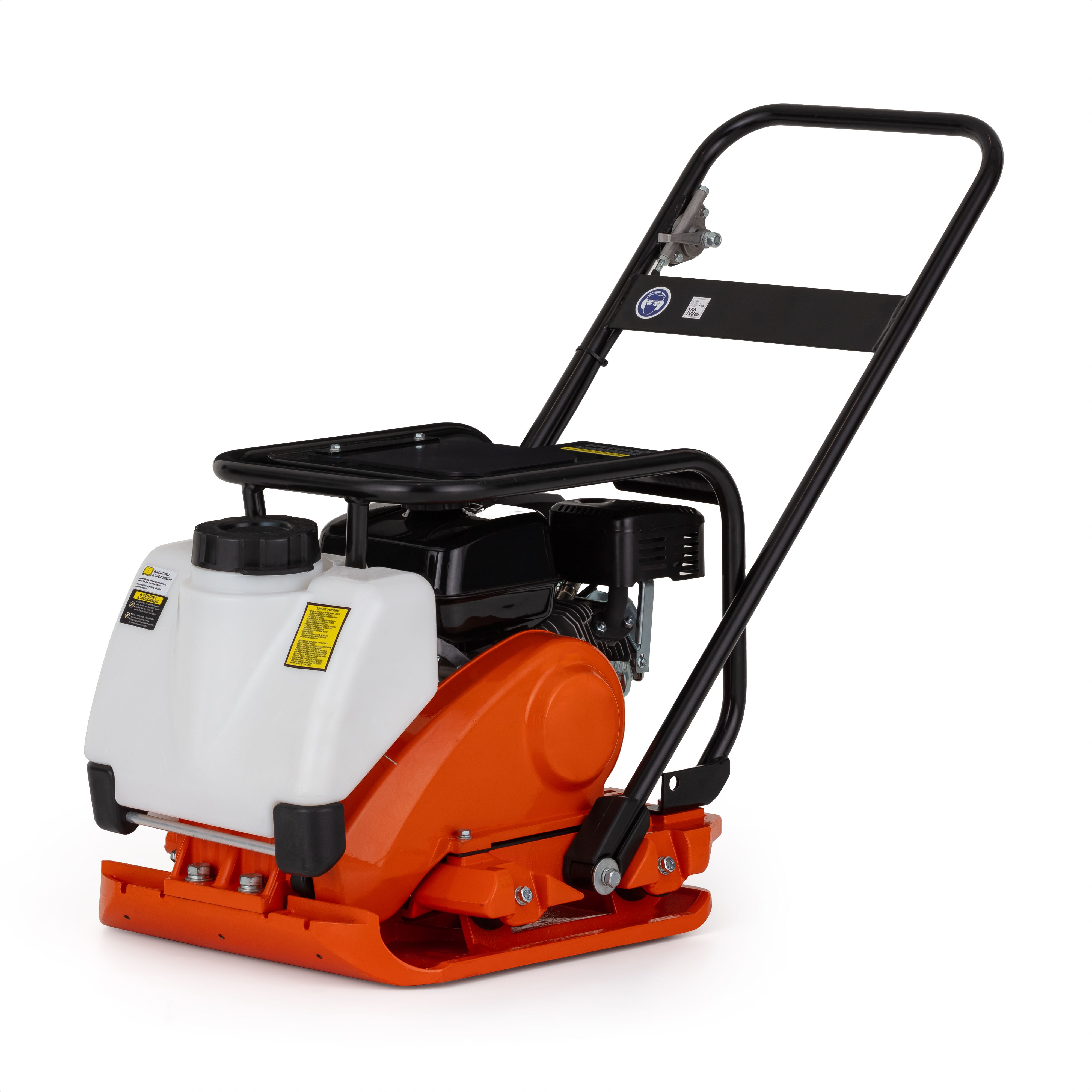

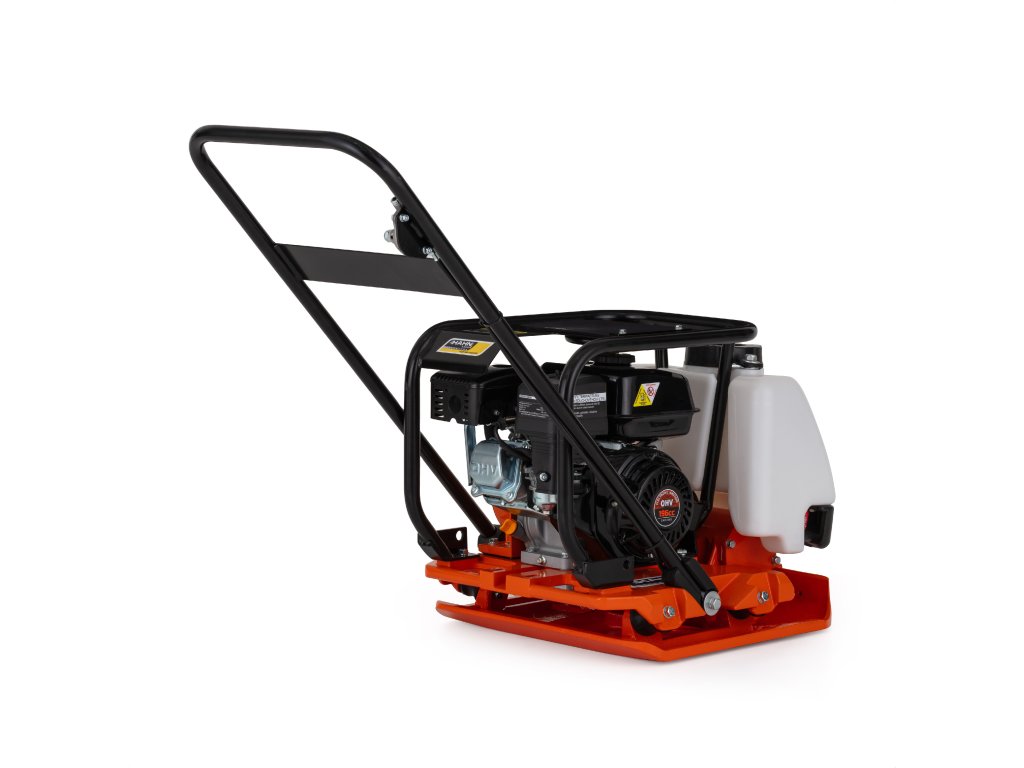

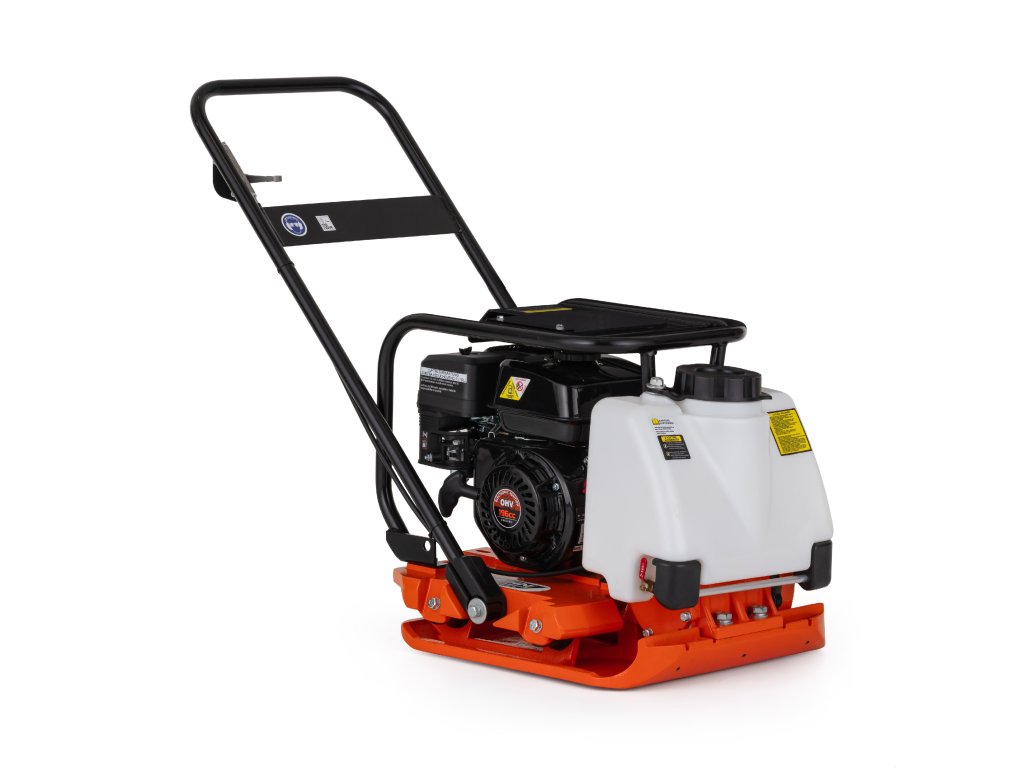

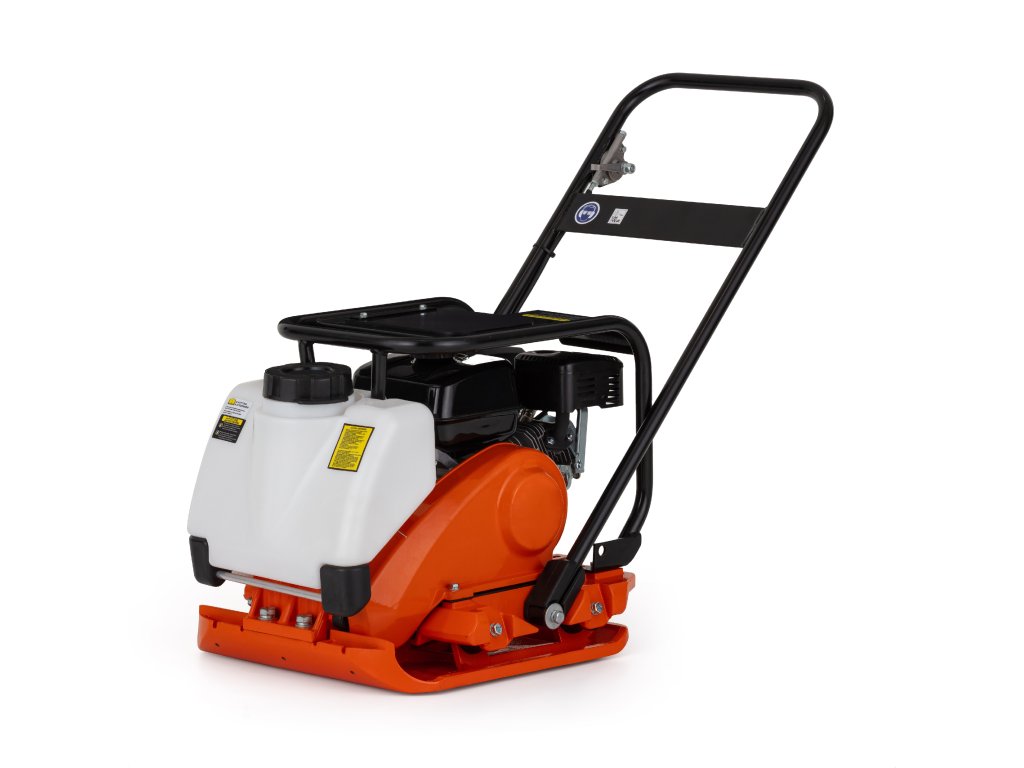

Hahn&Sohn Vibrating plate HCH95-HG200

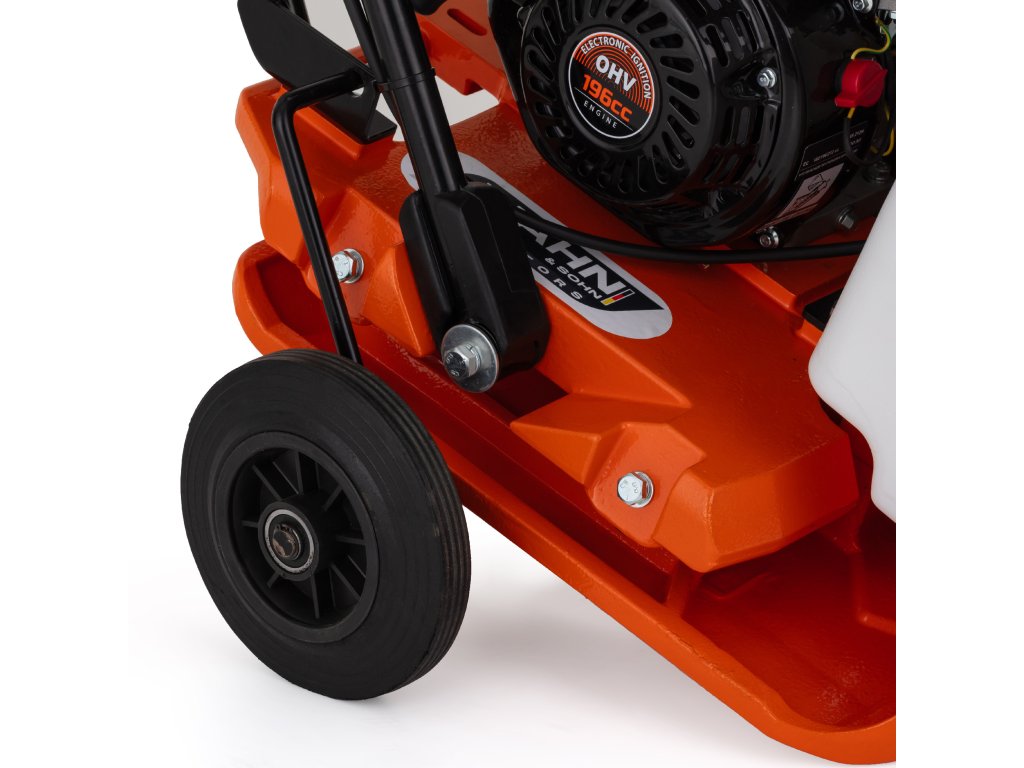

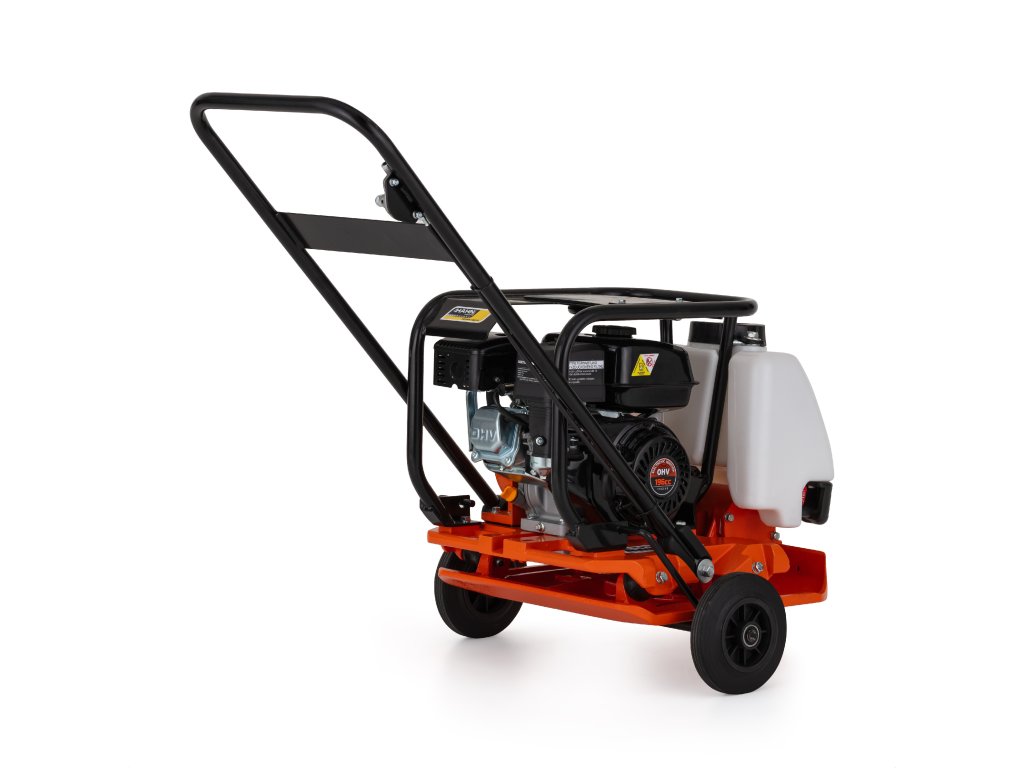

Vibrating plates are among the most heavily loaded construction machines, which is why we focus on simple and robust design solutions. The HC95 is based on a heavy-duty vibrating plate and a durable motor with a maximum output of 4.2 kW and a rated power of 3.8 kW. To increase working comfort, we have equipped the unit with transport wheels.
- Vibrating plate suitable for compacting a wide range of substrates

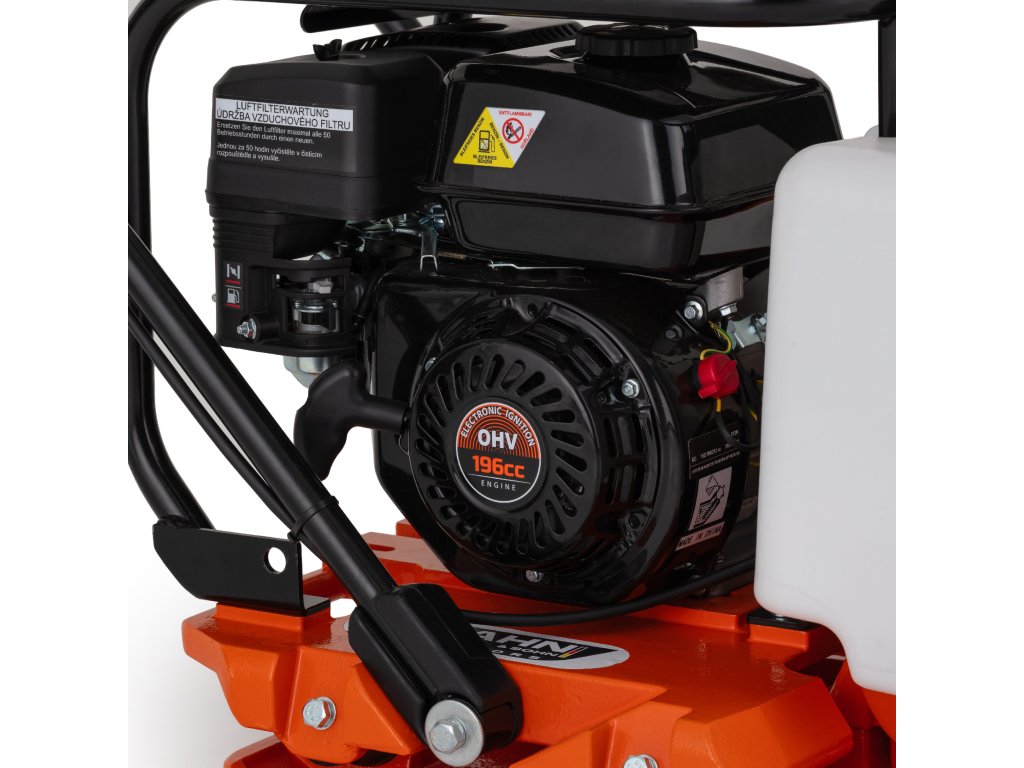

- Reliable and powerful petrol engine

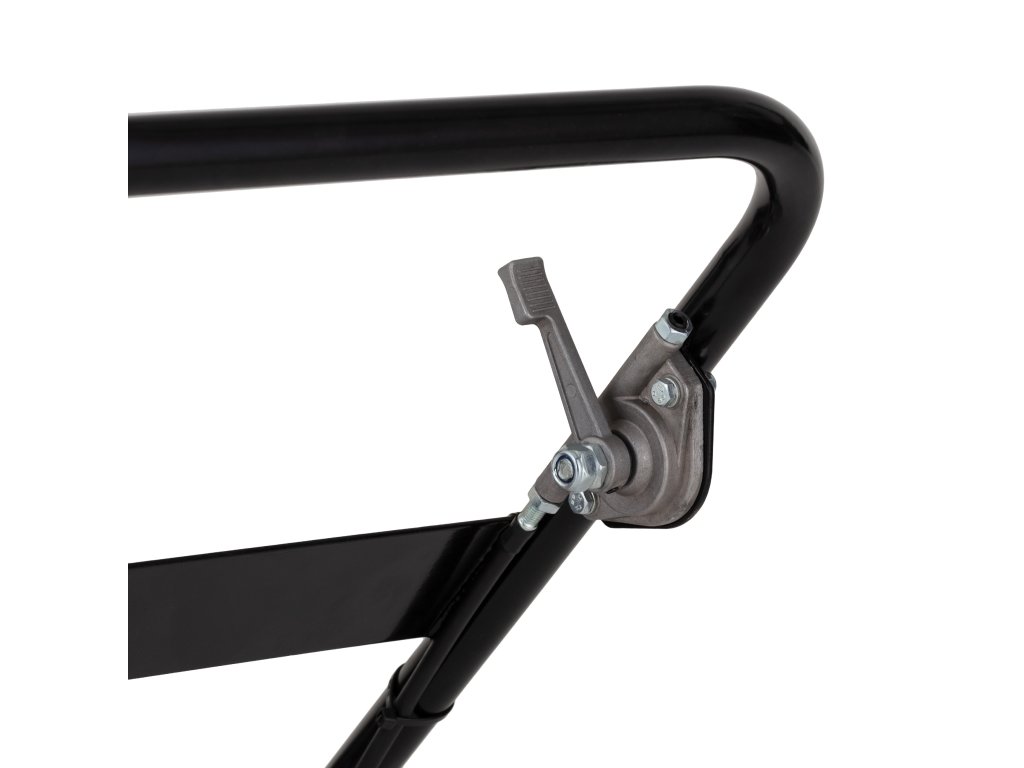

- Ergonomic handle for smooth and easy transport
- Vibration protection to protect the motor and ensure long service life
- Water tank for compacting hot surfaces
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 95 kg |
| Frequency of undercutting/vibration: | 6000 vpm |
| Centrifugal force: | 21 kN |
| Maximum efficiency: | 315 m²/h |
| Plate size: | 530x540 mm |
| Dimensions: | 1070x520x810 mm |
| Engine volume: | 196 cm³ |
| Maximum power: | 4,2 kW / 5.7 HP |
| Nominal power: | 3,8 kW / 5.1 HP |
| Engine type: | 1-cylinder, four-stroke petrol engine, OHV |
| Fuel consumption: | |
| Amount of oil in the system: | |
| Tank volume: | 3,6 l |
