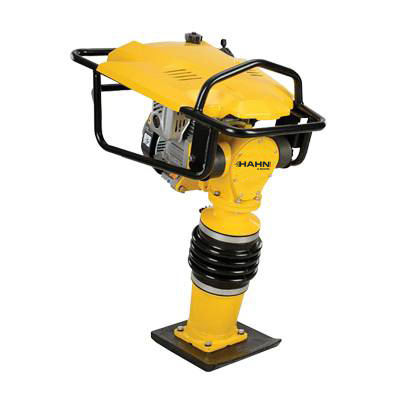

Hahn & Sohn Vibrating tamper HSH68-GX100
Weight: 83 kg
Maximum power: 6 kW
Lift volume: 149 cm³
Fuel: Unleaded gasoline
Hahn & Sohn Vibrating tamper HSH68-GX100
Hahn&Sohn Vibrating tamper HSH68-GX100
- Cast iron plate, suitable for compacting various types of surfaces
- Reliable and powerful gasoline engine
- Vibration protection to protect the motor and for a long service life
- Robust construction designed for the toughest conditions
- Top quality production guaranteeing many years of trouble-free operation
- Frequency, stroke height and stroke force adapted to different surfaces
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 83 kg |
| Frequency of shocks/vibrations: | 660-700 vpm |
| Maximum jump height: | 50-80 mm |
| The power of shock: | 18 kN |
| Dimensions: | |
| Fuel tank capacity: | 2 l |
| Max. speed: | 3.8Nm / 3000 ot./min |
| Maximum power: | 6 kW |
| Nominal power: | 3,2 kW |
| Engine displacement: | 149 cm³ |
| Engine type: | Single-cylinder, 4-stroke, OHV, air-cooled |
| Maximum fuel consumption: | ≤1.5 l/h |
| Oil tank volume: | 0,45 l |
