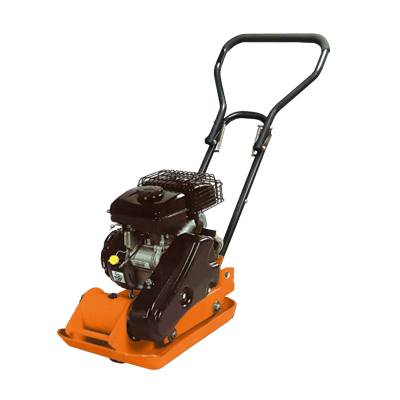

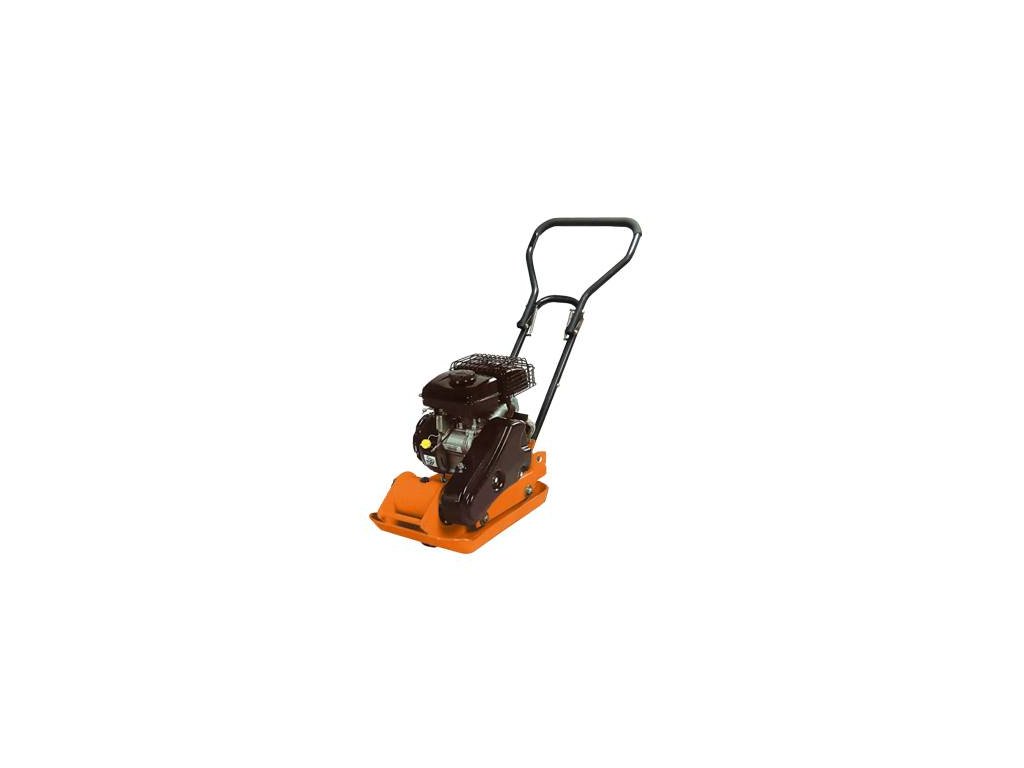

Hahn & Sohn Vibrating plate HC50-HG100
Weight: 53 kg
Maximum engine power: 6 kW
Rated engine power: 1,3 kW
Lift volume: 98 cm³
Fuel: unleaded gasoline (ROZ 95)
Hahn & Sohn Vibrating plate HC50-HG100
Hahn&Sohn Vibrating plate HC50-HG100
Vibrating plates are among the most heavily loaded construction machines, which is why we focus on simple and solid construction solutions in our production. HC50 is based on a solid vibrating plate for hard work and a durable engine with a maximum power of 6 kW and a nominal power of 1.3 kW.
- Vibrating plate suitable for compacting a wide range of substrates
- Reliable and powerful petrol engine
- Ergonomic handles ensure smooth and easy transport
- Vibration protection to protect the motor and ensure long service life
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 53 kg |
| Frequency of undercutting/vibration: | 5600 vpm |
| Centrifugal force: | 8,2 kN |
| Maximum efficiency: | 480 m²/h |
| Plate size: | 495x320 mm |
| Dimensions: | |
| Engine volume: | 98 cm³ |
| Maximum power: | 6 kW |
| Nominal power: | 1,3 kW |
| Engine type: | 1-cylinder, four-stroke petrol engine, OHV |
| Fuel consumption: | ≤1.1 l/hod |
| Amount of oil in the system: | 0,45 l |
